What are Specifications: -Material: ABS, Zinc Alloy, Brass -Colour: Black, Red -Type: M8 5 16in Stud -Maximum Voltage: 48V DC -Current Rating Per Stud: 62.5A -Rated current of the whole electric block: 250A -Auxiliary Terminal Screw Current: 20A -Length: Approx. 17cm

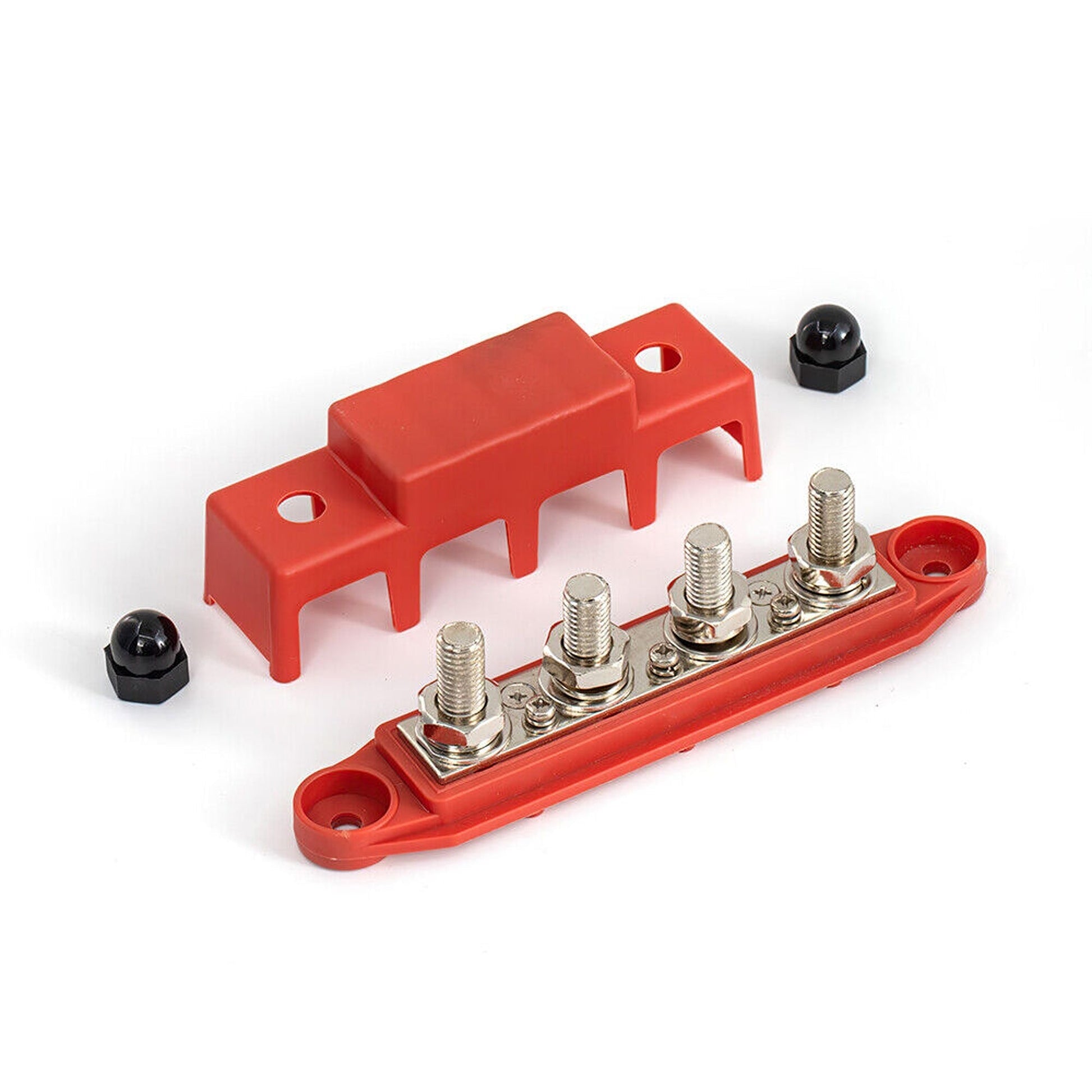

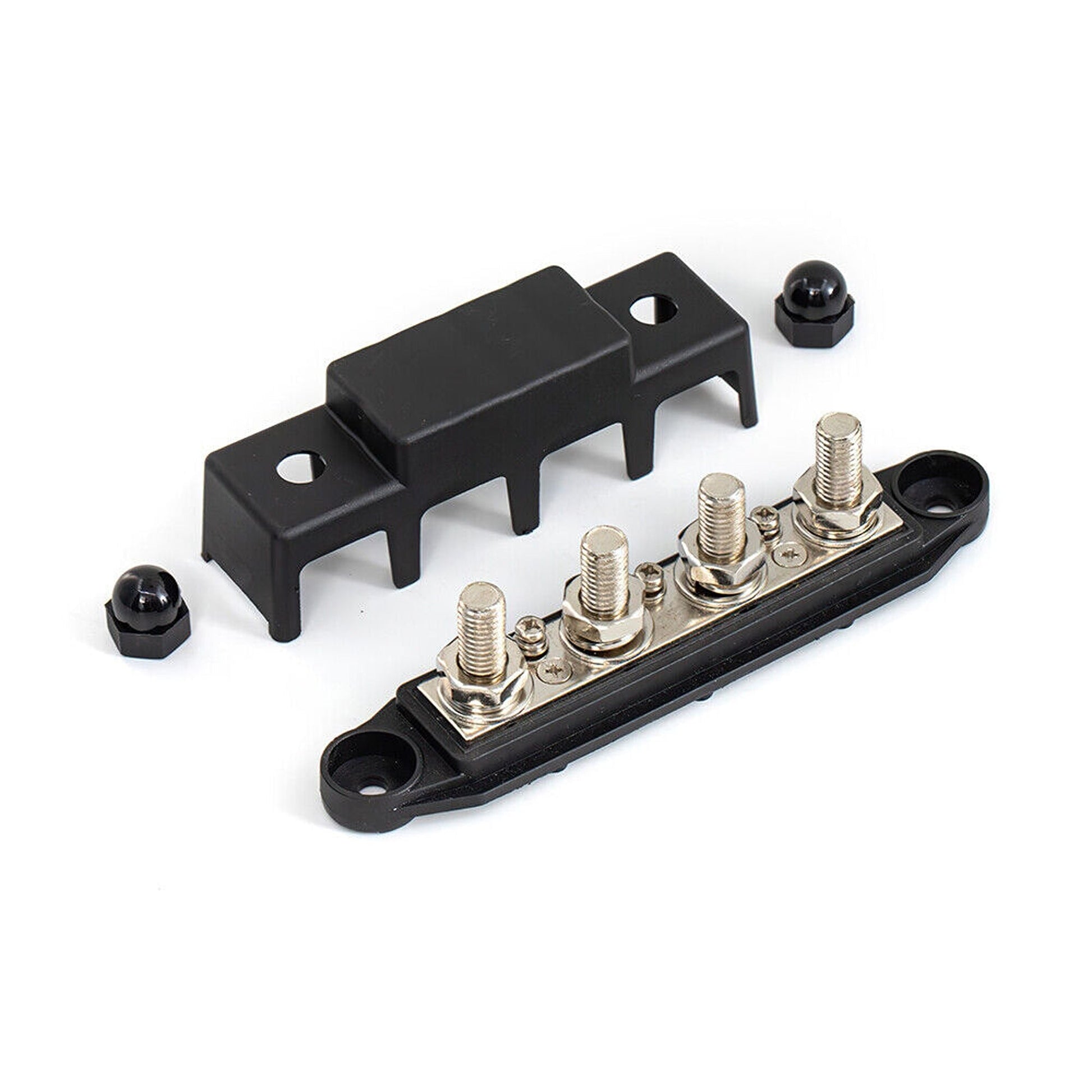

What is Description: -Max Voltage: 48VDC. Max continuous amperage: 250ADC. Max intermittent: 20A per connection less than 1 minute. So whether your working on a boat, a car, or an RV. -Low resistance, maximum conductivity and corrosion protection. The nylon nuts connect to two external studs to prevent accidental short circuits. -A removable Nylon cover keeps metal components from making contact with anything. The insulated nylon base is flame-retardant. -Provides several large gauge connections for running a dedicated ground to the battery and offers more minor gauge connections for lower voltage. -The bus bar is an excellent circuit collection wire Harness in the car, RV, yacht, caravan, and ship power system. The busbar holds wide cables securely to keep the wires neat.
What in the Box: -2 x Power Distribution Block
Notes: -The colours may vary slightly depending on different monitor displays. -Please allow for minor discrepancies due to manual measurement.
