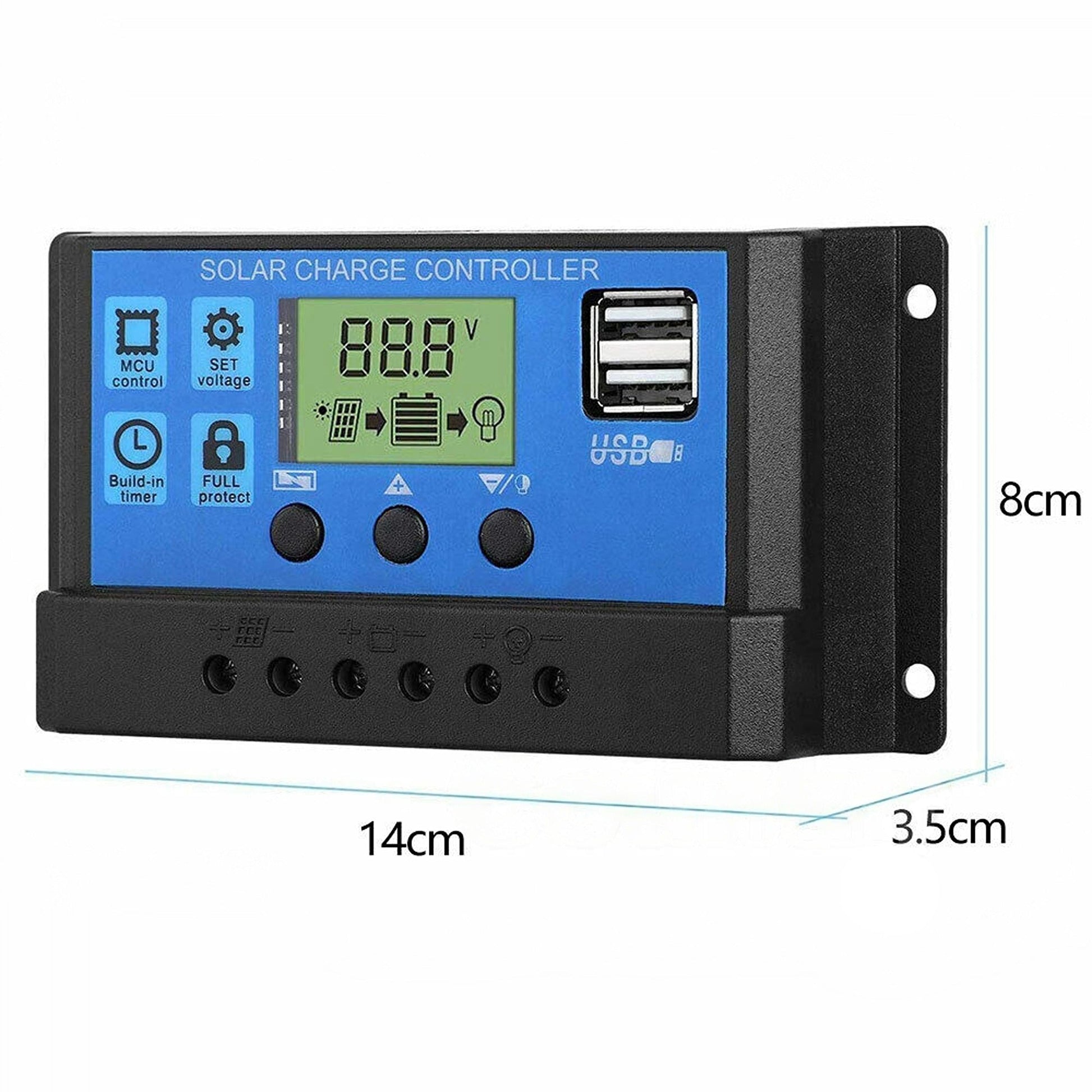

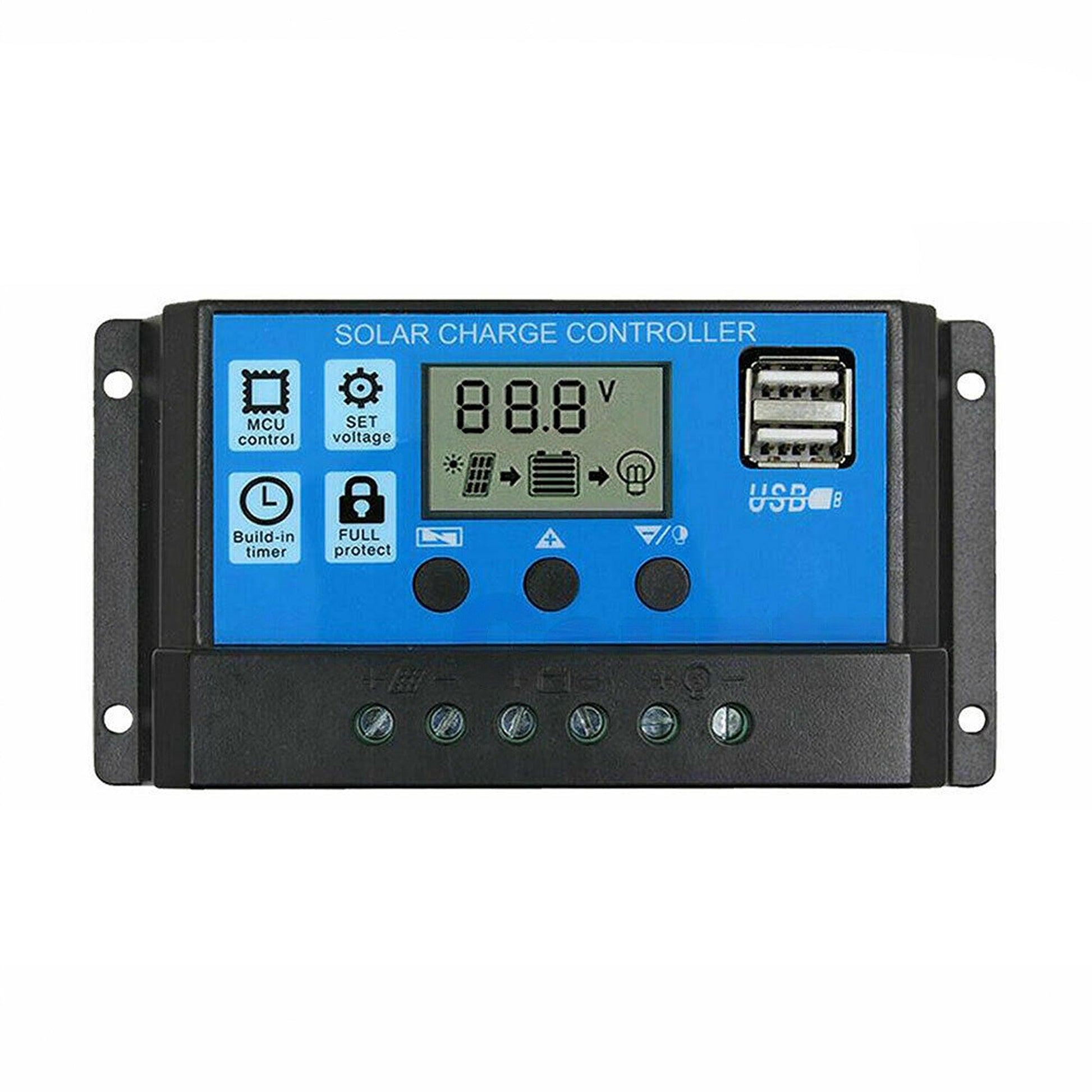

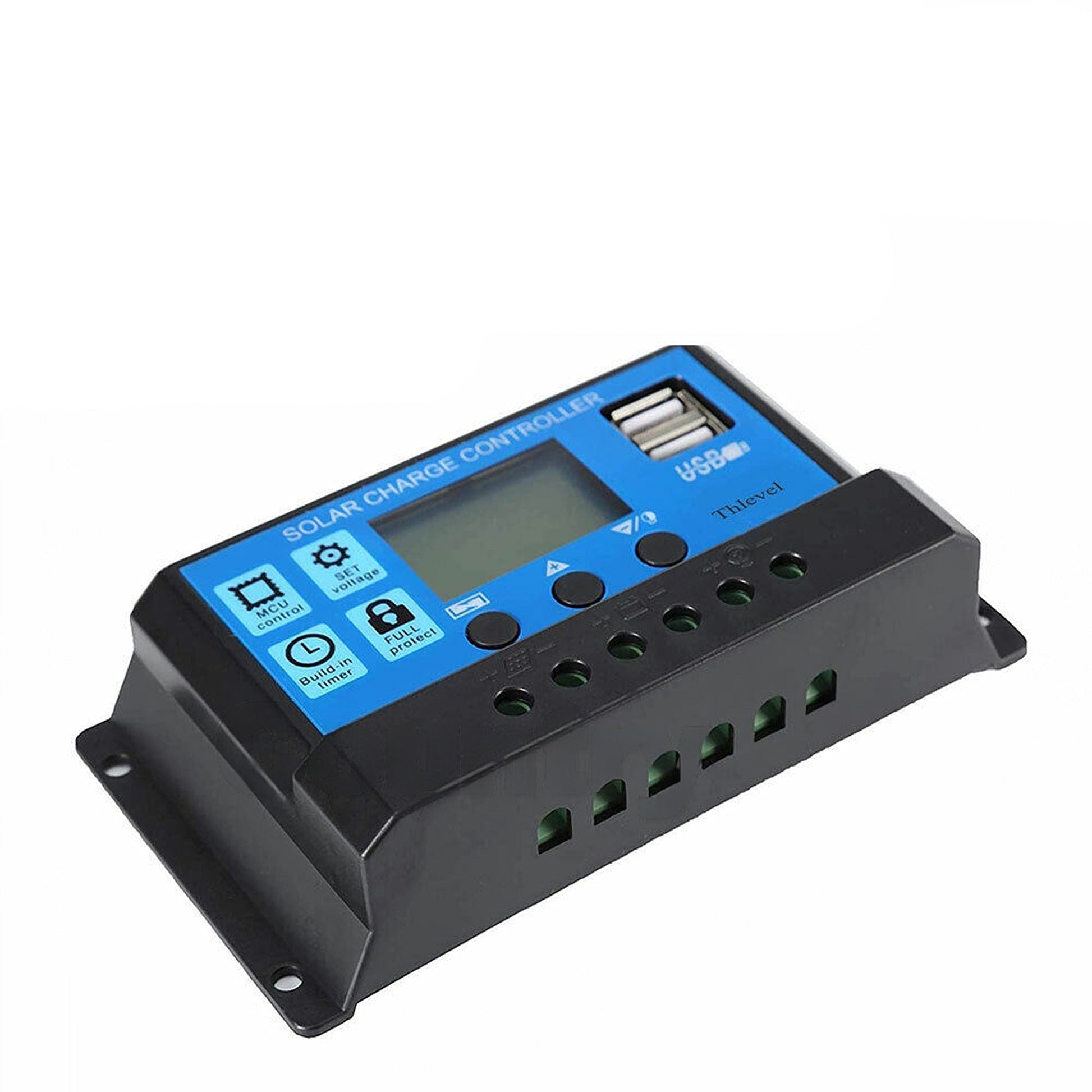

What are Specifications: -Rated Voltage: 12V 24V Auto -Application: Solar System Controller -Current: 20A, 30A -Size: 150 x 78 x 35mm -20A: 260W 12V 520W 24V -30A: 390W 12V 780W 24V

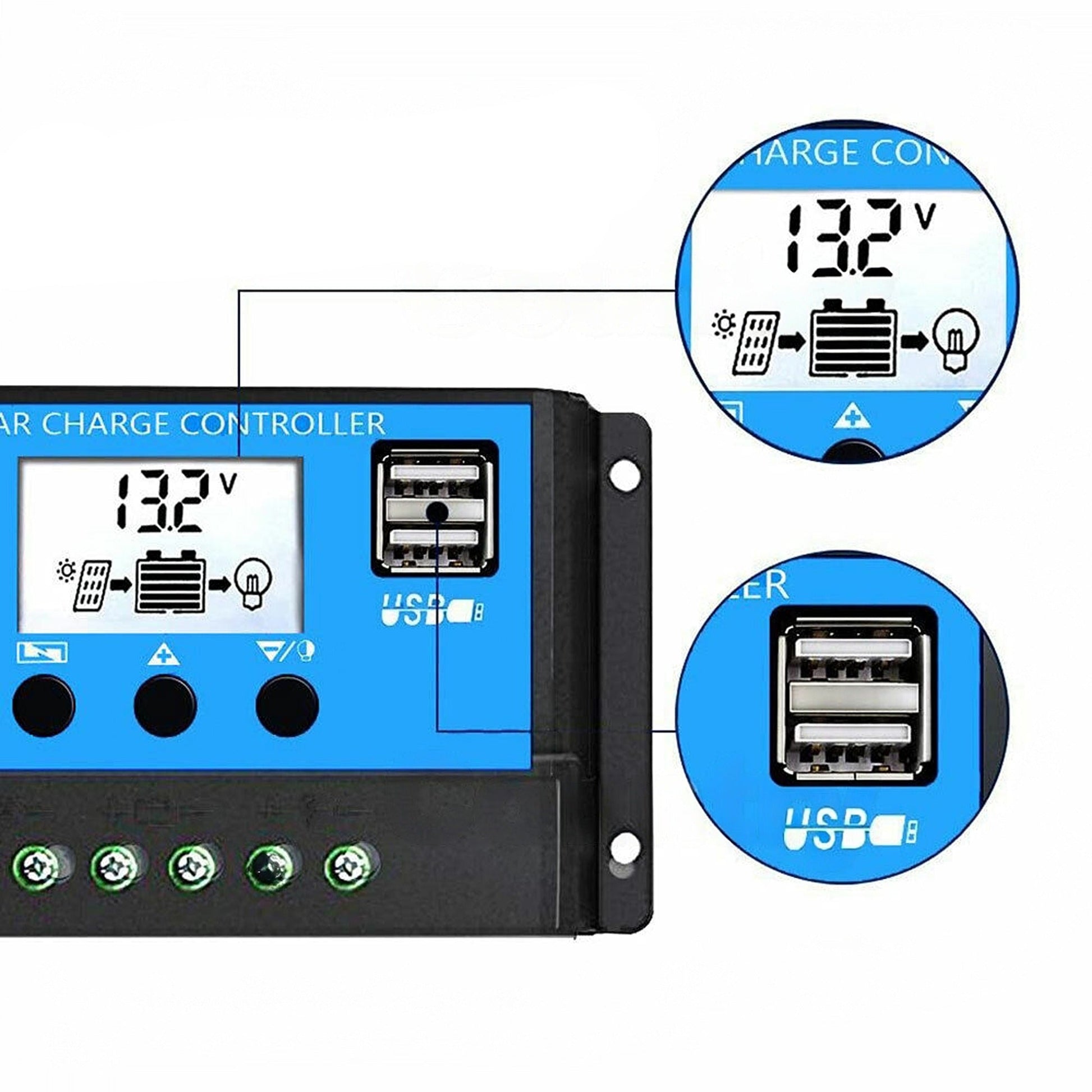

What is Description: -Build-in industrial micro controller. -One-key setting, auto memory function. digital display, -4-stage PWM charge management. -There are Build-in short-circuit protections, open-circuit protections, reverse protections, over-load protections. reverse current protections, low heat productions. -With double USB ports charge. -The Regulator is only suitable for lead acid batteries: OPEN, AGM, GEL
Safety Instructions: -Make sure your battery has enough voltage for the controller to recognize the battery type before first installation. -The battery cable should be as short as possible to minimize loss. -The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL -Make Sure it is not suited for nickel metal hydride, lithium ions or other batteries. -The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

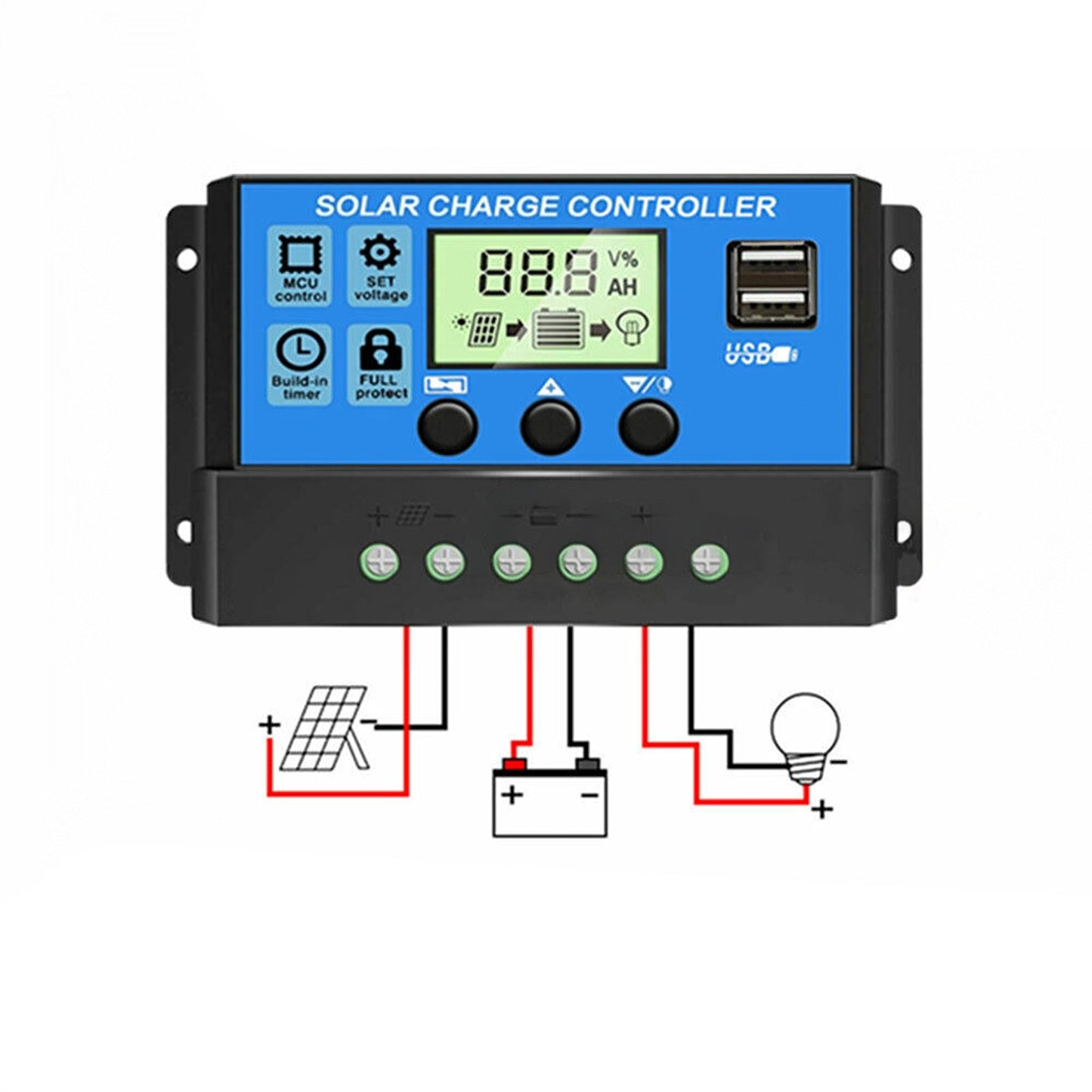

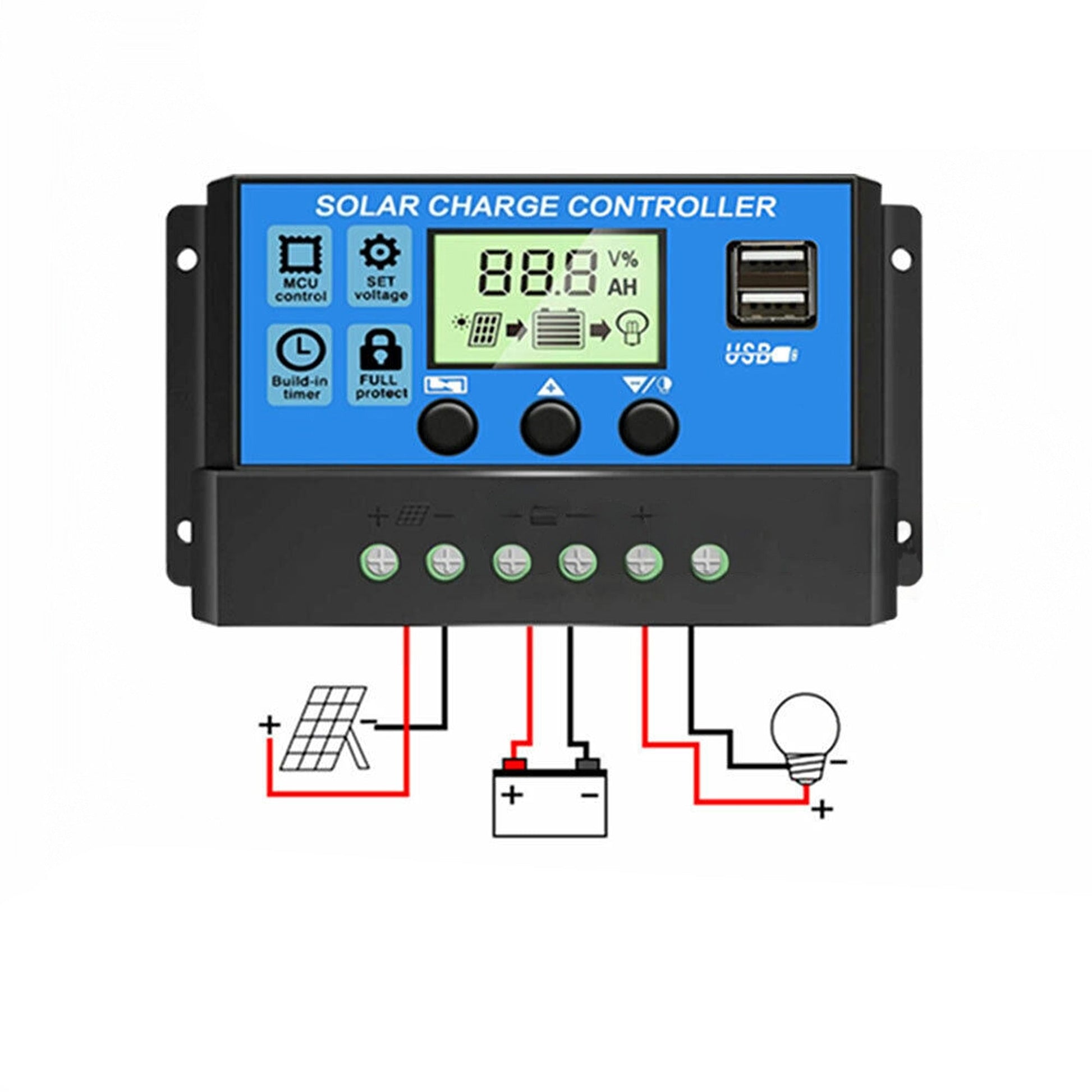

System Connection: -Connect the battery to the charge regulator plus and minus. it will show 1, if it detects 12V battery, 2 if it detects 24V battery. -Connect the photovoltaic module to the regulator plus and minus. -Connect the consumer to the charge regulator plus and minus.
What in the Box: -1 x Solar Panels Battery Charge Controller -1 x User Manual
Notes: -The colours may vary slightly depending on different monitor displays. -Please allow for minor discrepancies due to manual measurement.
