What are Specifications: -Colour: Black and Red -Material: Copper, Plastic, Aluminum -Function: To Amplified FM Signal -Compatible Vehicle: Universal -Black Line Length: 24cm -Red Line Length: 50cm -Frequency:88 to 108MHz -Cable Type: 3C2V Standard Cable -Voltage: 12V -Mounting: Magnetic -Impedance: 75Ohm -V.S.W.R:2.0: 1 Max -Gain:25 to 30dBi -Cable Loss:2.5dB per m Max -Return Loss: 10dB Max -Connector: FM Universal Adaptor
What is Description: -Greatly strength the radio signal and reduce the noise. -Easy to assemble, saving cost and space. -Strong anti-interference, providing better signal. -Able to provide high output current, low harmonic distortion and cross, ensure security operation.

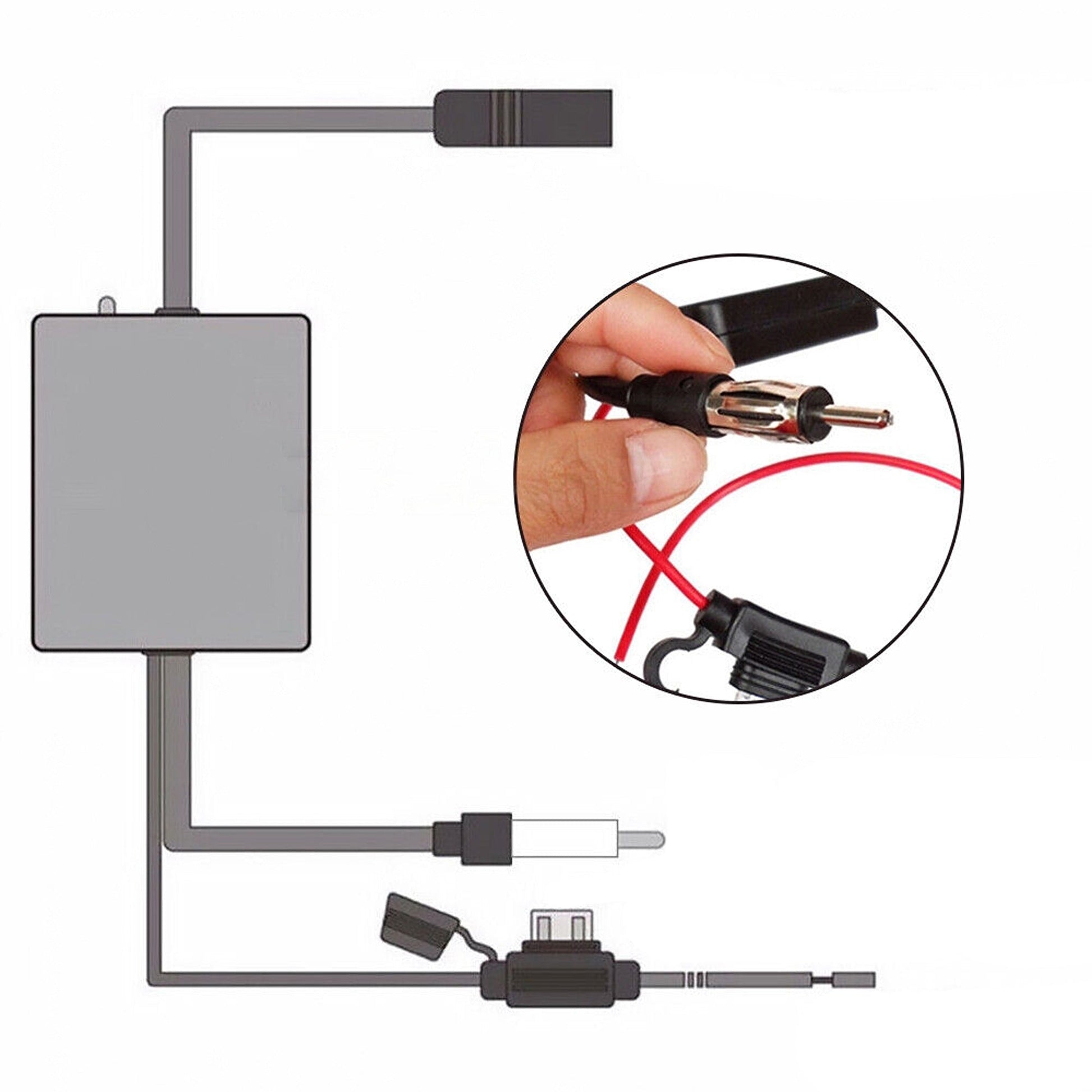

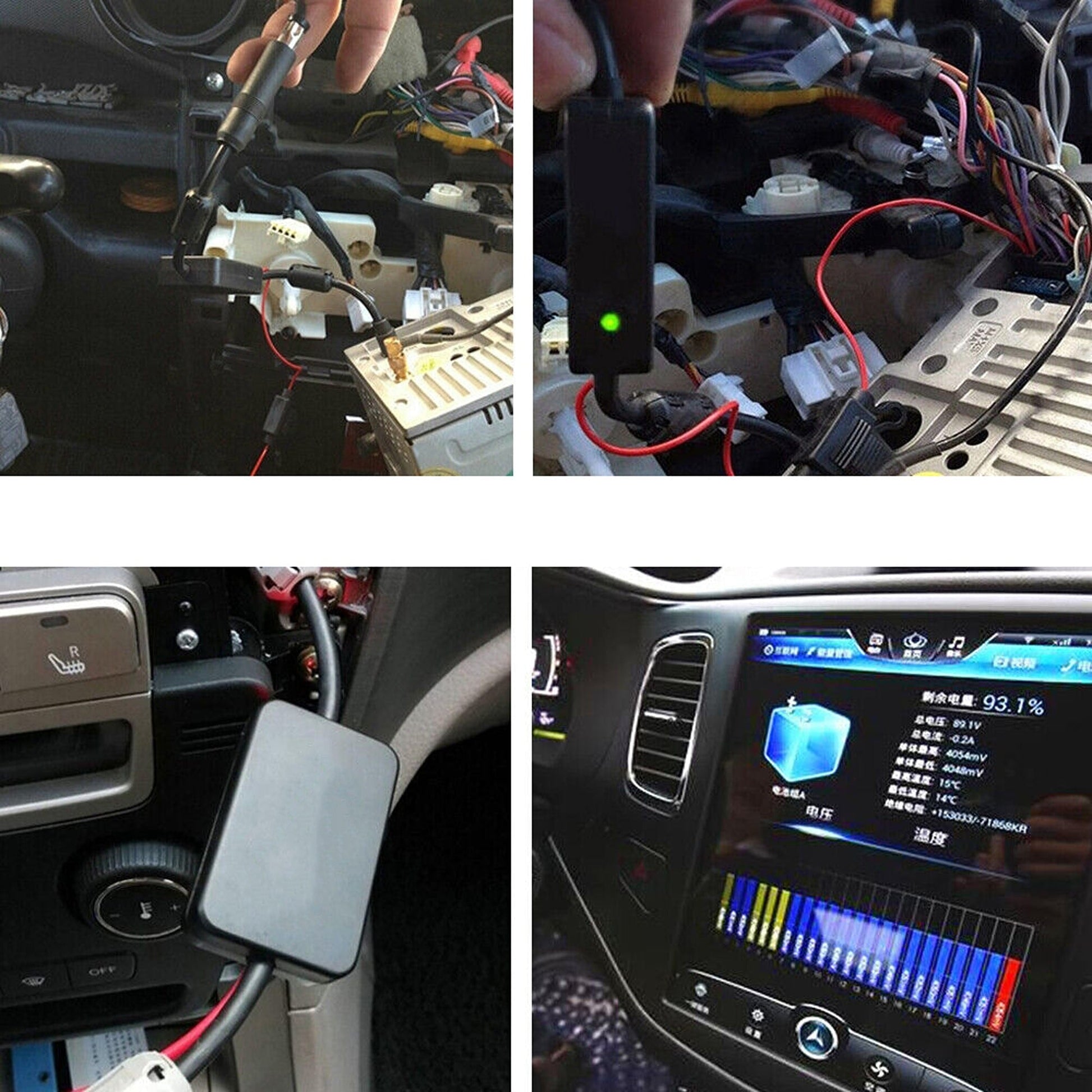

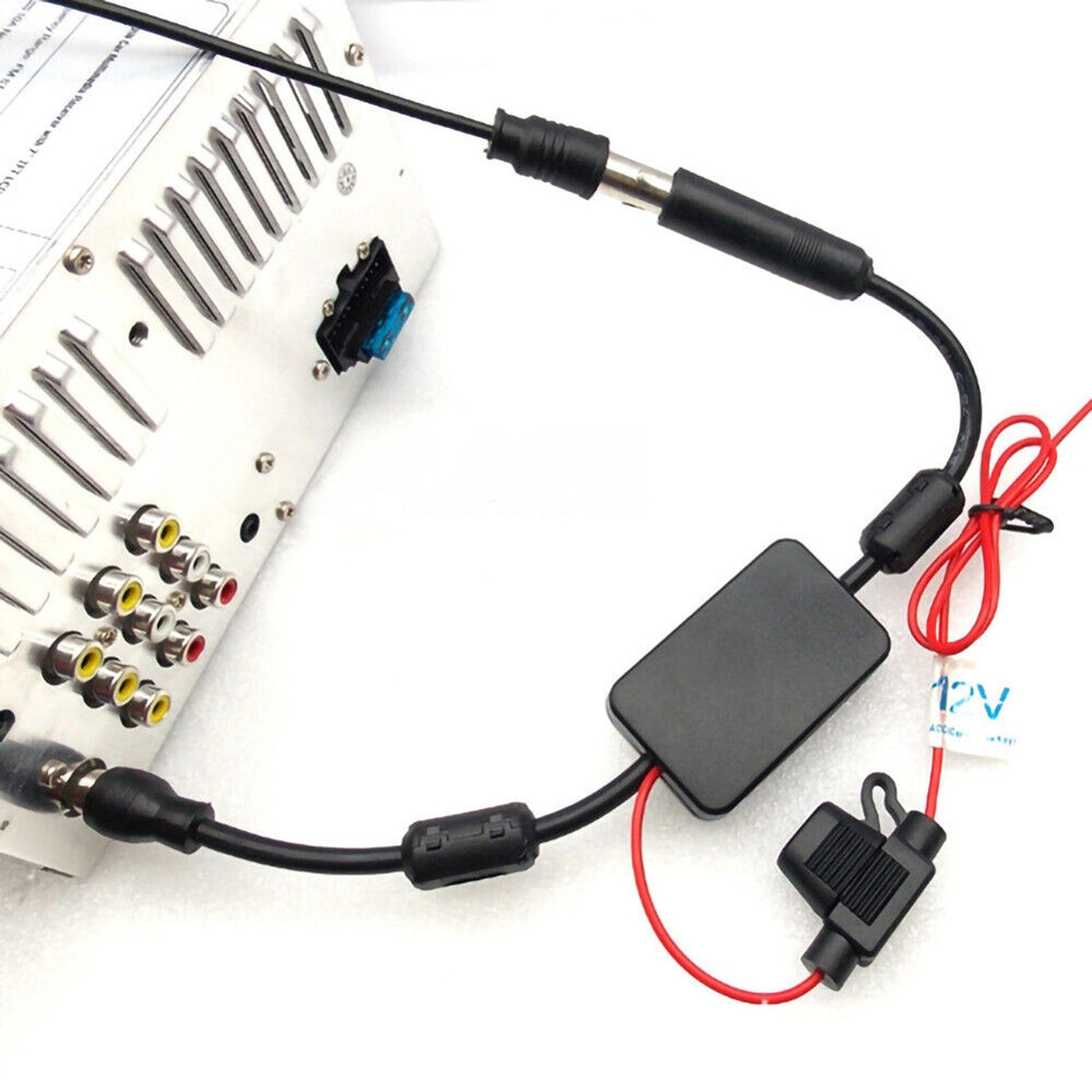

Installation: -1st Test if car radio is OK. -2nd Turn power off, detach the decorative frame, pull-out antennas connector, then put the amplifier between the original antenna and radio. -3rd Red cable connect to DC 12V power cable. use 3M adhesive tape to fix it in car. And then reinstall as it use to be. -4th Turn cars power on, open the radio and re-search programs, you will have more channel.

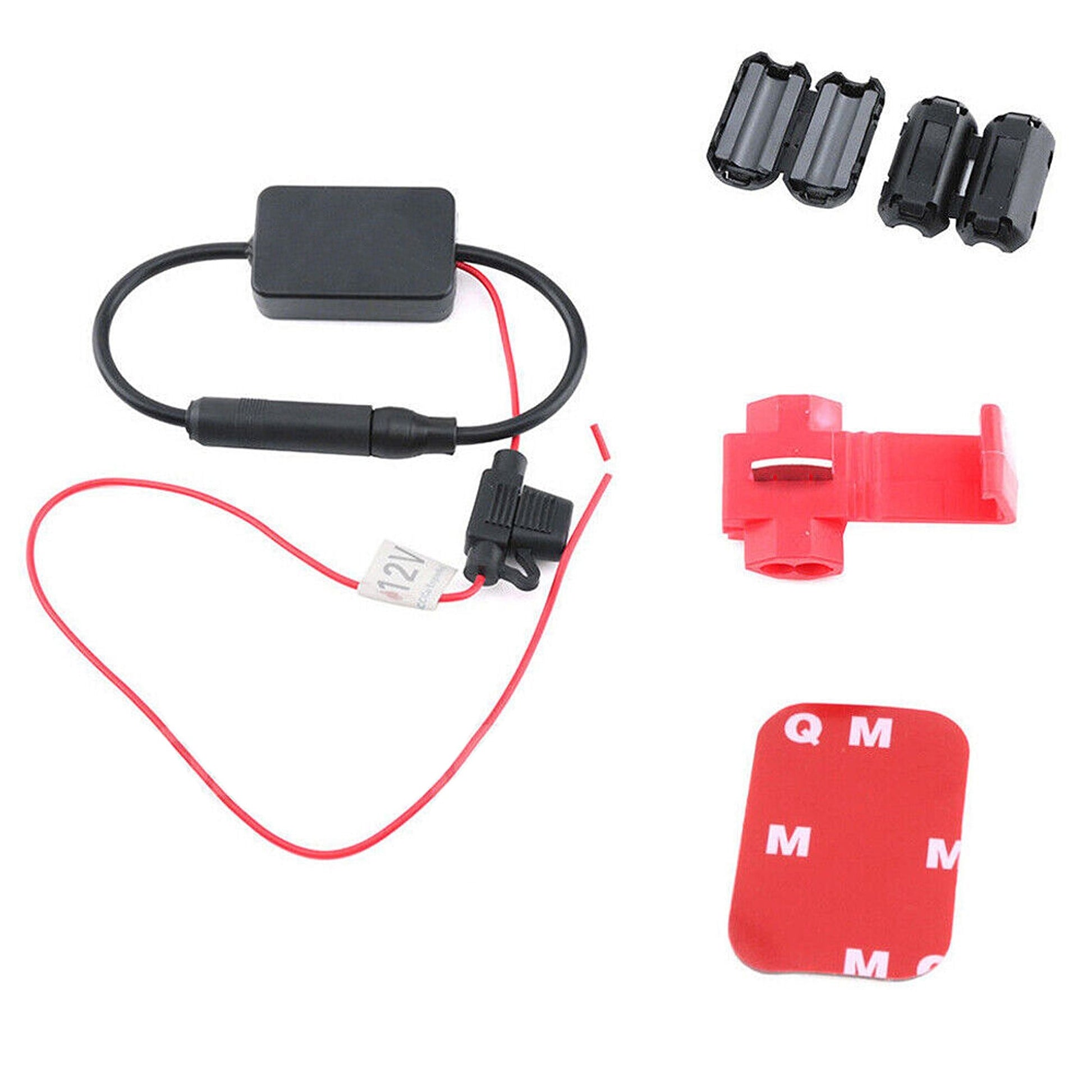

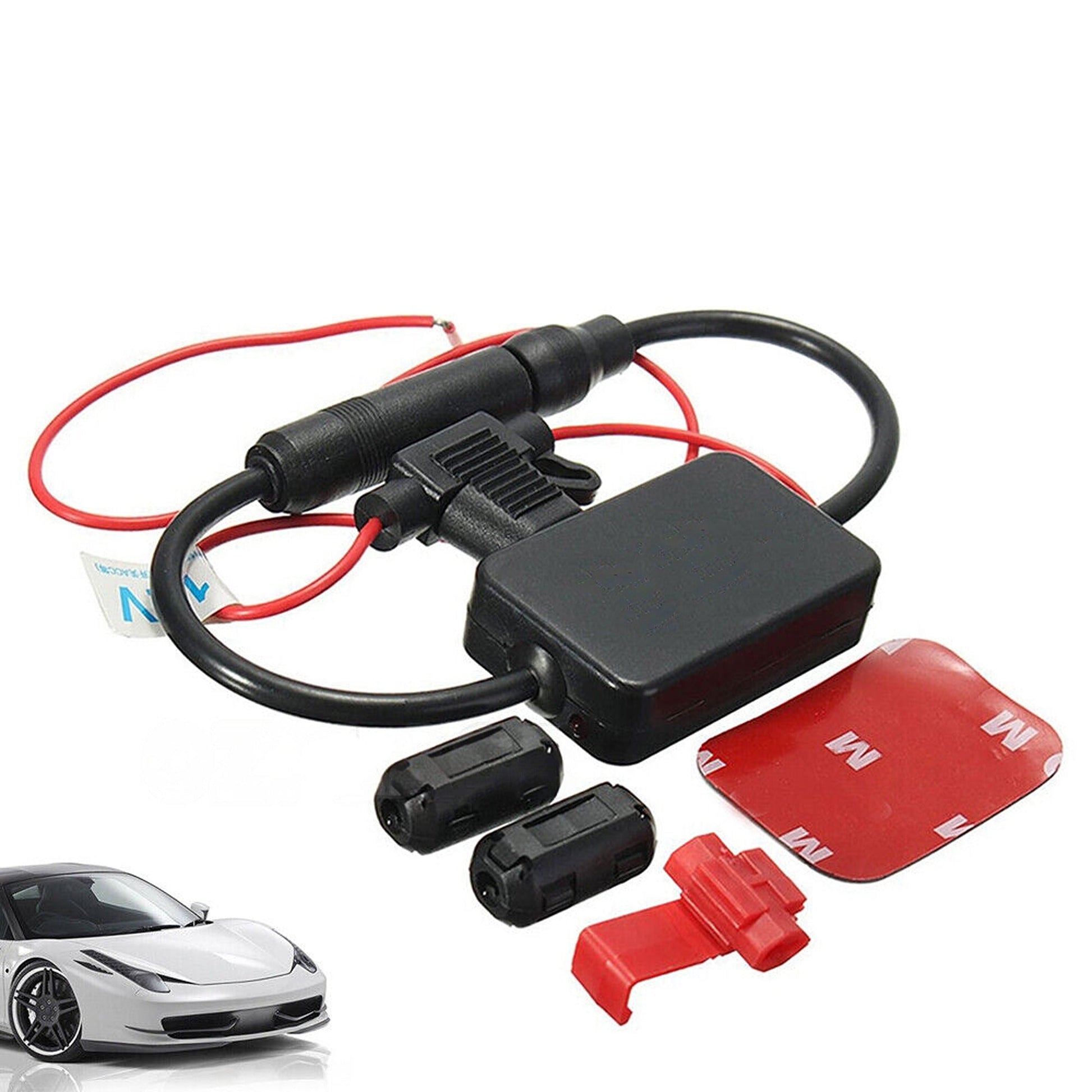

What in the Box: -1 x Car Radio Aerials Signal Amplifier -1 x 3m Adhesive Tape -3 x Accesories
Notes: -The colours may vary slightly depending on different monitor displays. -Please allow for minor discrepancies due to manual measurement.
